Configuring
Setting up for the first time~
After uploading the firmware for the first time, it will use with the default settings and start an WiFi Access Point called ems-esp
. Connect to this using the default WPA password ems-esp-neo
. When prompted with a login screen (called a captive portal) sign-in with username admin
and password admin
.
Now you're ready to further configure the settings. The recommended first step is to connect to your home network and this can be configured through the Network menu option on the web page, or directly using a Telnet Command Line interface (CLI). If you haven't adjusted the hostname you can reach the web UI via http://ems-esp or http://ems-esp.local.
Next are the board settings and some other MQTT tweaking which you can read below.
If you're seeing warnings that it failed to connect to the EMS bus, or there are Tx or Rx errors then follow the troubleshooting guide.
If Rx incomplete telegrams are reported in the log, don't panic. Some telegrams can be missed and this is usually caused by noise interference on the line.
Application Settings~
This next section describes some of key application settings that can be configured via the WebUI, found under the Settings menu.
Board Profile~
- If you have your own ESP32 development board you can choose from a pre-configured board (which is already set on a BBQKees Gateway) or select
Custom
to view and change the hardware settings: - Rx GPIO - Which GPIO pin the Rx is assigned to. By default this is GPIO 23 but it can be almost any free pin. Connect this GPIO pin to the RX port on the EMS interface board.
- Tx GPIO - Which GPIO pin the Tx is assigned to. By default this is GPIO 5 but it can be almost any free pin. Connect this GPIO pin to the TX port on the EMS interface board.
- Button GPIO. Set a pin with pull-up. The button is used for different functions, such as holding for 10 seconds to reset to factory settings.
- Temperature GPIO. This is the pin where any external temperature sensors are attached. The Dallas chips DS1822, DS18S20, DS18B20, DS1825 are supported including their parasite varieties and can also be daisy-chained onto a single line, up to 100 sensors.
- LED GPIO. This is the pin for the LED, defaulted to the onboard LED on the ESP dev board.
- Eth PHY Type for choosing the Ethernet chip used.
On ESP32 development boards there are often also pins marked RX and TX. However, these are usually connected to the USB chip and cannot be used for the EMS interface circuit.
EMS Bus~
- Tx Mode. Tx Mode is the mode in which EMS-ESP sends telegrams on the EMS bus. Choose the mode that works best for your system and watch for Tx errors in the Web Dashboard and
show ems
in the Console. Changing the value has immediate effect. EMS
is the default for EMS1.0 systems but also compatible with most other bus protocols.EMS+
is designed to work better for EMS2.0/EMS+ systems.HT3
for Heatronics3 used primarily by Junkers.Hardware
uses the internal ESP's hardware to send out the telegram. Telegrams are sent immediately. It is the fastest and most efficient method but works only on some systems.- Bus ID. The EMS-ESP can simulate multiple devices. Stick to the
Service Key (0x0B)
unless using more than one EMS gateways/interface board.
General Options~
- Language. This sets the language to be used for the EMS Device Entity names, as shown in the WebUI Devices Dashboard and also for MQTT Discovery. The default is English. When using Home Assistant you may need to remove the previous EMS-ESP MQTT entries (from HA's Settings->Devices & Services->MQTT) and restart EMS-ESP just to be sure.
- Hide LED. Turns off the LED when in normal operating mode. The LED is still shown when booting or when there are connection issues.
- Enable Telnet Console. This is on by default and allows users to connect to the in-secure Telnet server on port 23.
- Enable Analog Sensors. This enables any GPIO to collect signals, whether it's a digital I/O, a pulse counter or ADC measuring mv.
- Convert temperature values to Fahrenheit. For our US friends.
- Bypass Access Token authorization on API calls. For RESTful write commands via HTTP POST the access token is required. This is for security reasons to prevent anyone changing device settings. Setting this flag makes the API open. Not recommended!
- Enable Read only mode. This disables any outgoing Tx write commands to the EMS bus, essentially putting EMS-ESP into listening mode. However Tx is needed to detect EMS devices (as it sends out a Version command). If you want to explicitly put EMS-ESP into a read-only/sniffer mode use
set tx_mode 0
from the console. - Underclock CPU speed. Under-clocks the ESP to 160Mhz, saving on power, heat and prolonging the lifespan of the chip at the cost of performance and response time. A reboot of EMS-ESP is required.
- Enable Shower Timer. Enable to time how long the hot water runs for and it will send out an MQTT message with the duration. The timer starts after a minimal of 2 minutes running time.
- Enable Shower Alert. This is somewhat experimental and may not work on all boilers. After 7 minutes (configurable) running the hot water it will send out a warning by sending cold water for 10 seconds (also configurable). The boiler goes into test mode to perform this operation so use with caution!
Formatting Options~
- Boolean Format Dashboard. This is how boolean values are displayed in the WebUI and MQTT payloads.
- Boolean Format API/MQTT. This is how boolean values are written in the MQTT payloads and API JSON output.
- Enum Format API/MQTT. This is how list values are presented in the MQTT payloads and API JSON, either by it's value or the index position within the list. Not if using Home Assitant you will not see the values but integer numbers for some entities, e.g. instead of
off, hot, cold
it will display0, 1, 2
.
Temperature Sensors~
- Enable parasite power. Select this option when using (Dallas) temperature sensors with parasitic power.
Logging to Syslog~
- Log EMS telegrams in hexadecimal will write the telegrams in raw format as hexadecimal values everywhere.
-
Enable Syslog:
-
IP is the IP address of a syslog server for capturing remote logs. Leave blank is not using SysLog.
- Port if using an alternate port number. The default is 514. And it uses UDP (not TCP).
- Log Level sets the maximum log level for reported messages. The highest level is DEBUG which will send a lot of log data so use with caution.
- Mark Interval will send out a special
mark
message to the SysLog. This is useful for timing events.
Setting up the Network~
The Network page allows you to connect EMS-ESP to your home network. You can choose between WiFi or Ethernet. EMS-ESP will auto-detect which and set the settings accordingly. Anything in the Board Profile will override these settings.
CORS (Cross-Origin Resource Sharing)~
CORS, when enabled adds new HTTP headers to each Web request to allow the Web API to make fetch
and XMLHttpRequest
requests across different domains. It disables the pre-flight check which follows the same-origin policy by default. See https://developer.mozilla.org/en-US/docs/Web/HTTP/CORS for more details. There is also a "CORS unblock" browser addon that works the same way.
Enable this function when running in VPNs or you have other servers (like Grafana) running on other domains that are making calls to EMS-ESP's API.
Setting up MQTT~
Most are self-explanatory and the settings that are specific to EMS-ESP are:
- Broker Address. Use the IP address.
- Port. The default is 1883 and 8883 for SSL.
- Base. All topics are prefixed with the
Base
so this is important. Make sure this is unique when using more than one EMS-ESP. - Client ID. This is used internally to identify EMS-ESP with the broker and is optional. Note MQTT topics will be postfixed with the hostname (default
ems-esp
) and not the client ID. Use when having multiple devices. - Username and Password are optional.
- Set Clean Session. Creates a non-persistent session when enabled. Default is disabled and is recommended to keep it disabled when using home automation systems.
- QoS. Quality of Service, 0, 1 or 2. 0 is the default and suitable for more scenarios. 1 will give a guarantee that the message has been sent, but will create slightly more traffic and overhead.
- Always use Retain Flag. Enable if you want to persist all the messages on the broker. Default is disabled.
- Formatting. The
As individual topics
option will send all data as separate topics, andNested
will group the data into one single JSON payload. The default is nested. - Publish command output to a 'response' topic'. This takes the output from an API command (e.g. read) and publishes the result in a topic called
response
. - Publish single value topics on change. This option will immediately publish the topic and payload for each operation and only available when MQTT Discovery is disabled.
-
Enable MQTT Discovery. Enables the integration with Home Assistant and Domoticz.
- Entity ID format: There are 3 options. The first
single instance, long names
uses the older < v3.5 format. The default and recommended setting for all new installs is the 2nd option calledSingle instance, short name
which uses the EMS-ESP device entity name, which is fixed and can be seen in theSettings->Customization
page. The last option must be used when running more than one version of the EMS-ESP firmware as it makes each unique by prefixing all MQTT topics with the base name. - Publish Intervals. This section is per device and sets how frequent an MQTT message is sent. When set to 0 EMS-ESP will send data automatically when there is a noticeable change, which could be within a few seconds.
- Entity ID format: There are 3 options. The first
Managing Users~
The Security page allows you to change the default password for the captive portal and Telnet CLI. It also allows you to enable HTTPS for the captive portal and MQTT broker.
The Users page allows you to create additional users for the captive portal and Telnet CLI. The default user is admin
with password admin
.
Each user has an unique Access Token (viewable by clicking on the key icon) which is used for RESTful write commands via HTTP POST. This is for security reasons to prevent anyone changing device settings.
Adding Analog and Temperature Sensors~
External sensors, like temperature and analog sensors can be attached to a range of GPIO pins on the ESP32 chip. If using a BBQKees Gateway board it already has an external plug for Dallas temperature sensors which will be visible in the WebUI without any additional configuration.

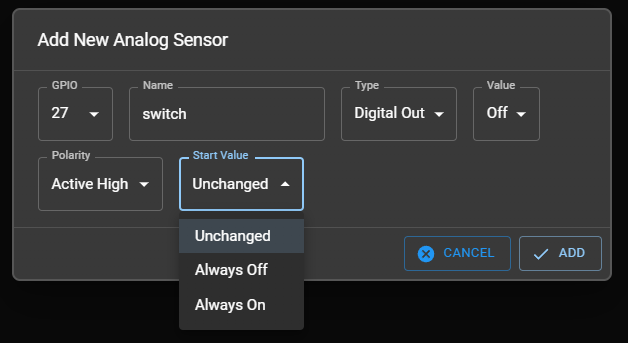

To add analog sensors click on Add Analog Sensor
and choose between a normal Digital in/out, a Counter (counting on/off pulses), ADC for measuring voltages, Timer, Rate and PWM 0-2. Note, the counter value is persisted and and not reset on reboot.
Warning
Be careful when picking a GPIO so it doesn't clash with the other used GPIOs (you can select CUSTOM board profile to view your current configuration).
EMS-ESP is connected to the low voltage bus of your heating and any over-voltage can damage the EMS-ESP board and possible your heating devices. Never power external equipment from the EMS-ESP board directly.
ESP32 development boards vary in their available pin configuration. Typically you can't use 1, 6-11, 12, 14, 15, 20, 24, 28-31 and 40+. See these links here and here.
The following GPIOs are recommended:
- digital output:
13, 19, 21, 22, 27, 33, 37, 38
- digital input/counter/timer/rate:
13, 19, 21, 22, 25, 26, 27, 33, 35, 37, 38, 39 (note no pullup on 35 & 39)
- ADC input:
13, 19, 21, 22, 25, 26, 27, 33, 35, 37, 38, 39
- DAC output:
25, 26
- PWM output:
13, 19, 21, 22, 25, 26, 27, 33, 37, 38
Limits:
- ADC:
1.5V
- DAC
8bit
- PWM: `max frequency 5000Hz, resolution 13bits``
- Counter/timer/rate trigger:
high->low edge with 15 ms debounce. Only for low pulse rates.
Controlling Relay's~
A common use case is to control a relay to switch on/off a device. This can be done by adding a digital output sensor and then creating a command to control it. The command can be added to the dashboard and scheduled to turn on/off at specific times.
Create an Analog Sensor with type 'Digital Out'.
The professional way is to use a separate relay board with opto-isolation and a flyback diode. The relay board is then powered by a separate power supply and the relay is connected to the digital output of the EMS-ESP as described above. The relay board is then connected to the device you want to control. This way the device is completely isolated from the EMS-ESP and the relay board can handle the higher voltage and current.
Customizing Entities~

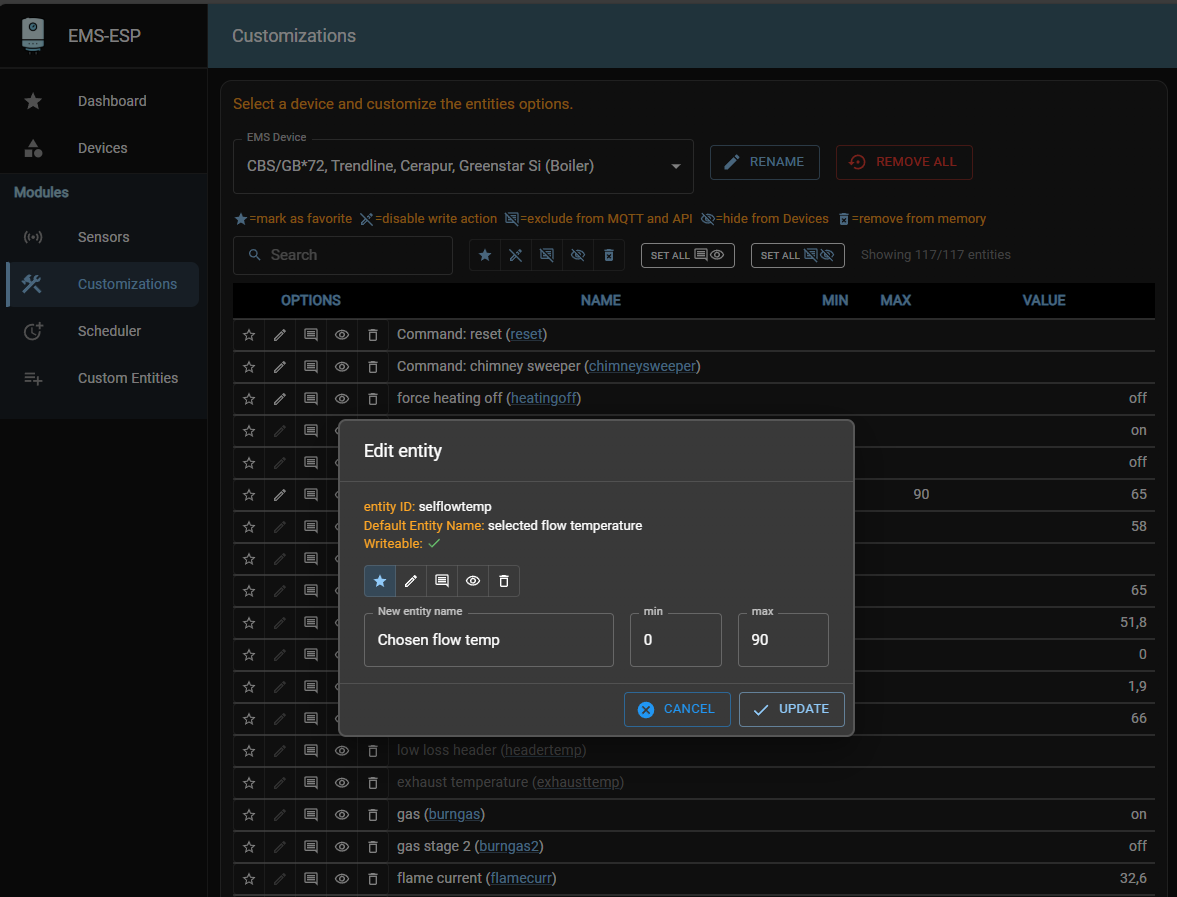

The Customization page shows all registered entities and allows to exclude commands and values from publishing via mqtt/api or remove them from dashboard. The dashboard only shows entities with values, the customization page shows all. If an entity has no value then it is supported by EMS-ESP, but not by your boiler/thermostat/etc.
Scheduling Actions~

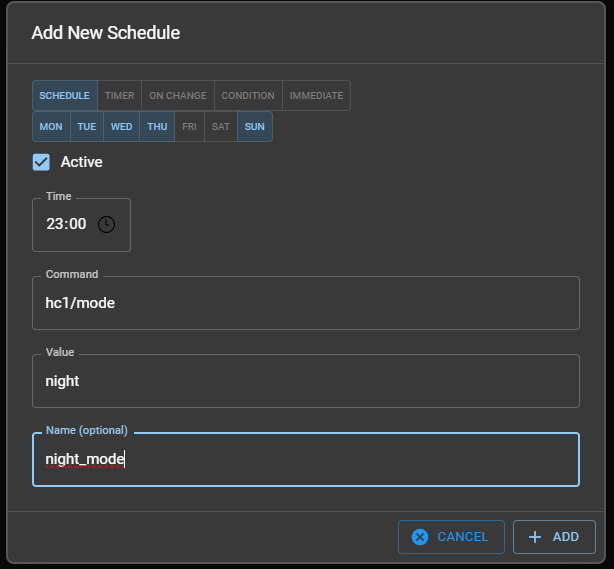

Use the scheduler to call commands at specific intervals. This is useful for example to set the hot water temperature to a higher value in the morning and evening, or do a system restart each week (by using system/restart
in the Command field).
When creating a scheduler entry, the name
is optional but it's useful to assign a name and then you can control it via a command (enable/disable) and see the status in the MQTT topic scheduler_data
.

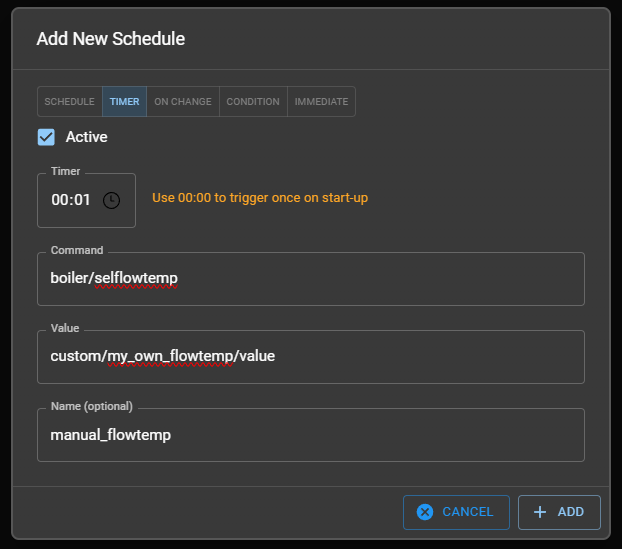

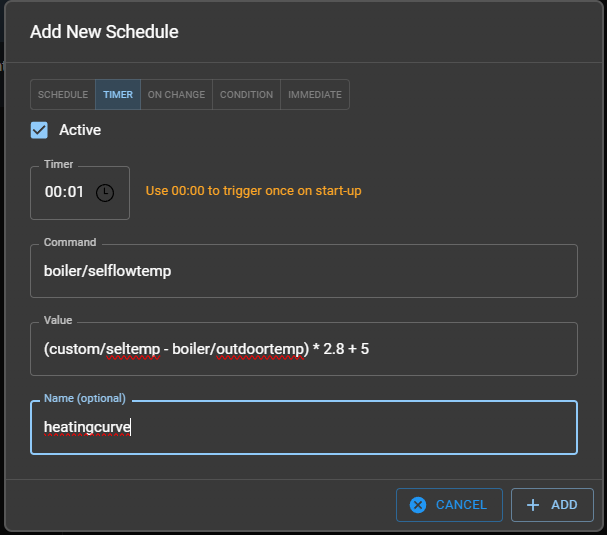

The scheduler can also be used to periodically set values based on another entity value, or even a user-defined custom entity (variable). For example to set the flow temperature of the boiler every minute based on a user managed entity which is controlled externally (e.g. in Home Assistant) it would look like:

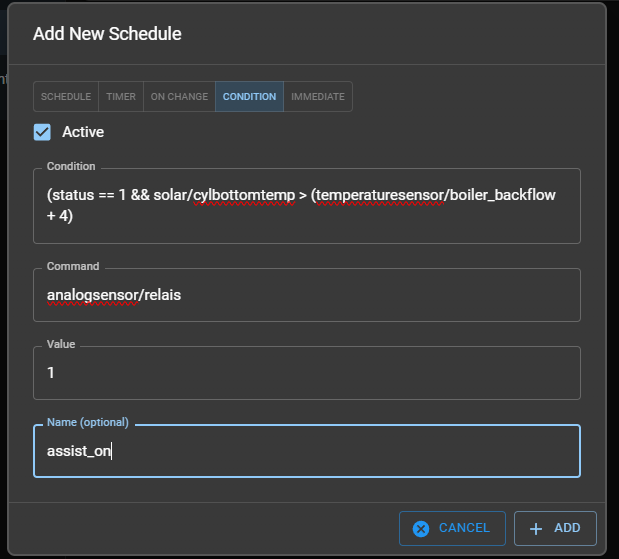

Conditions~
Introduced in version 3.7, the Scheduler has been extended to support conditional statements used in the Command
and/or Value
fields. Conditions have a strict syntax (see below) and are evaluated every 10 seconds. The condition is only executed when the condition changes from false to true. This is powerful new feature and allows, for example, to set a schedule based on a condition, or to set a value based on a condition.
Pay attention to the following rules:
- a condition has to be a logic value
0
or1
, the condition istrue
only for1
, an arithmetic result1
is also interpreted astrue
schedule command executed for3 > 2, 3 - 2
schedule command not executed for3 < 2
,3 + 2
- blanks are not needed, but makes the formula more readable
- EMS-ESP values are accessed
<device>/<entity>
or<device>/<entity>/value
,<entity>
may contain prefixes like<hc2>
. - checking enum and bool values depends on the user's API setting! Check the right value before setting a schedule e.g. check output http://ems-esp.local/api/thermostat to see if building = "medium", create the rule with
thermostat/building == medium
also for boolean values check if you have to use0/1
,off/on
,OFF/ON
, orfalse/true
- strings containing special characters have to be written in quotations, e.g.
boiler/pumpmode == "delta-P2"
, to avoid a calculation error on delta minus P2, other strings can be written with or without quotations - all strings are converted to lowercase
- commands followed by a divider (
/
) have to be set in parenthesis e.g.(boiler/seltemp)/2
- condition command is only executed on a change of the condition from
false
totrue
. If the condition stays true, the command is not repeated - command value can also be a formula
- allowed operations : arithmetic:
+ - \* / %
and prefix- logic:== != <= >= < > && ||
and prefix!
are useful for the value of onChange and condition: a single instance of<cond1> ? <cond2> : <cond3>
- on change trigger is always one or more entities
<device>/<entity>
, where device is not system. It can have multiple triggers. e.g.boiler/outdoortemp custom/setpoint
and triggers on change of each value (entities never change the same time (it's a callback) and logical operations here like&&
makes no sense)
Web Commands~
Sending or getting data via web request can be used in a json command:
- GET a value from webserver:
{"url":"http://server.tld/path/file"}
- GET a json value from webserver and select the key:
{"url":"http://server.tld/path/file", "key":"nameofkey"}
- set a value with POST: Command:
{"url":"http://server.tld/path/file", "header":{"content-type":"text/plain", "token":"mytoken"}
Value: the post message, if it is a json the content-type header is set in header, no need to set it.
Examples:
- getting power state of a tasmota plug (exampleIP):
{"url":"http://192.168.0.100/cm?cmnd=power", "key":"power"} == off
is identical with{"url":"http://192.168.0.100/cm?cmnd=power"} == {"power":"off"}
- setting a tasmoto plug:
{"url":"http://192.168.0.100/cm?cmnd=power%20on"}
Notification~
With web commands a service like pushover can be used to send a push-message on events. To send different message create a custom entity in RAM named message
, or what you like. Create a schedule on change triggering the change of this message and sending the pushover message.
Now you can create other schedules with the command custom/message
and individual text as data.
Adding Custom Entities~

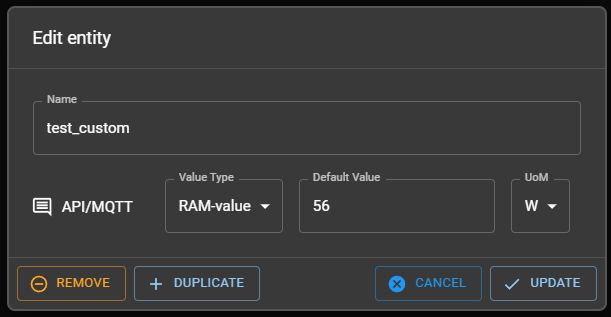

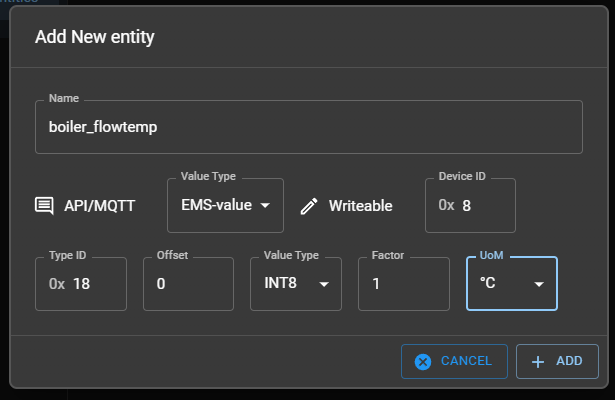

Custom Entities is an advanced and powerful way to extend EMS-ESP by adding your own EMS entities that extracts data from a specific EMS telegram. This is useful when EMS-ESP doesn't yet support a specific entity, or when you want to extract data from a telegram that is not yet supported. Another common use case is for debugging or watching specific behavior when changing parameters on an EMS device.
For example, a modern Heat Pump may have new features that are not included in EMS-ESP. Here you would use the watch
command to view the incoming EMS traffic in combination with manual adjusting specific parameters and when you have located the specific telegram and the offset, create a Custom Entity to fine-tune the type and verify the the value. Then request it to be included in the next EMS-ESP release update.
